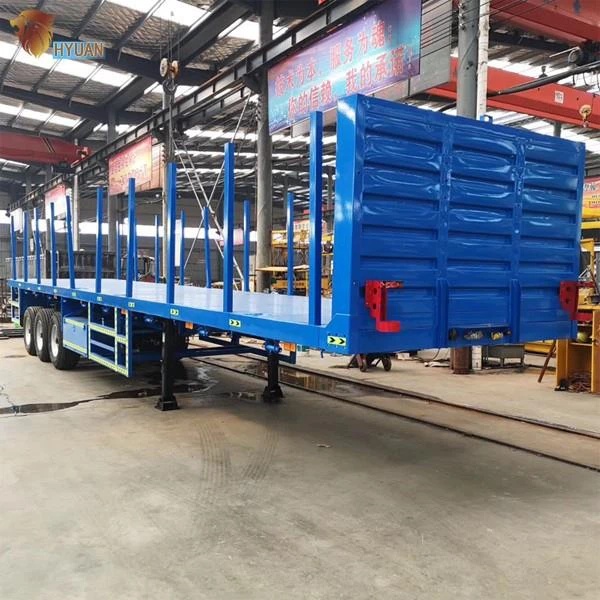

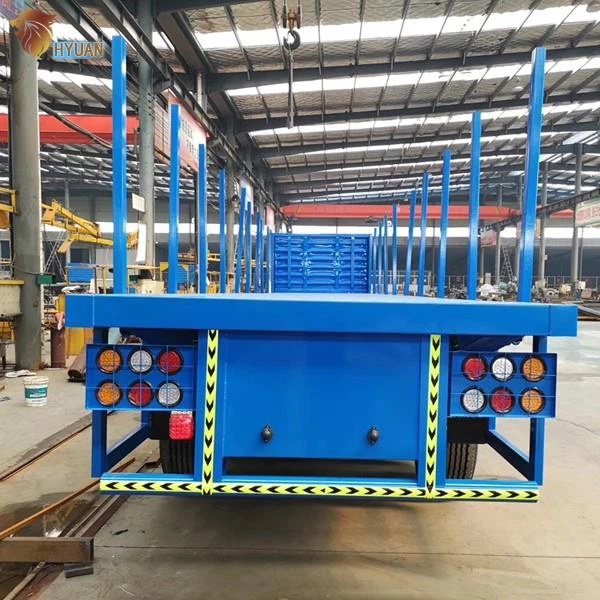

50Ton Column Flatbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
The flatbed trailers are not only used for steel and containers, but also items which can be loaded with pallets. LUYI can offer different flatbed trailers according to customer demand and national regulations. This trailer is usually used in ports. There are several box locks to fix the container in place. The trailer also could be used to transport cargo if the cargo can be fixed on the plate. The weight of this trailer is less than that of other types, so it is convenient to transport objects.
Product specification
|
Vehicle Use |
Low bed semi trailer |
|
Dimensions |
13000 to 16000mm x 3000 x 1750mm |
|
Loading Capacity |
40T-50T |
|
Floor Thickness |
2mm |
|
Main Beam Height |
500mm |
|
Upper Thickness |
8mm |
|
Middle Thickness |
6mm |
|
Down Thickness |
10mm |
|
Side Beam |
140mm Channel Steel |
|
Axle Weight Load |
13T |
|
Axle Brand |
Fuwa brand, 3 axles |
|
Suspension System |
Mechanical Suspension, Air Suspension, Bogie Suspension |
|
Wheel Rim |
8.25*22.5/9.00*22.5 |
|
Tire |
11R22.5 |
|
King Pin |
JOST 2.0 inch (50mm)/3.5 inch (90mm) |
|
Landing Gear |
28T |
|
Twist Locks |
4, 8, 12pieces (Lifting type or Twist Screw type), optional |
|
Brake System |
WABCO Valve with big chamber |
|
ABS |
Customer optional |
|
Lights |
Turning Light, Side Marker Light, Tail Light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool Box |
Customer optional |
|
Spare Tire Carriers |
Customer optional |
|
Painting Color |
Common China made Paint/Polyurethane paint, Color optional |
|
Customization |
According to your request |
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.

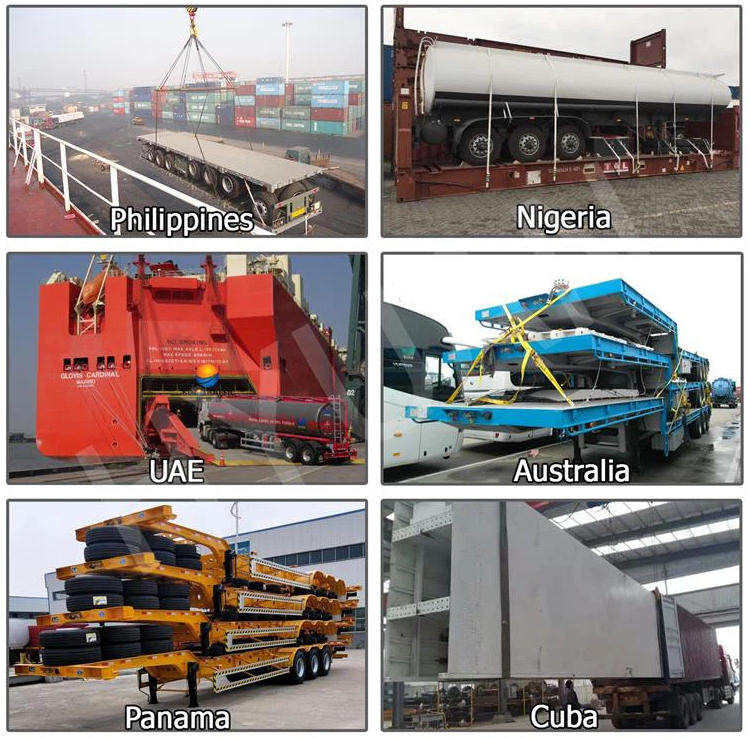

Deliver,shipping and serving
For transportation, we have best logistic partners,we will recommend the economic and safety method to our client.
(1) Normally use Bulk Carrier Vessel or RoRo Vessel.
(2) For some types like chassis trailer, flatbed trailer or other short trailers etc we could use 40HQ, 45FT container and Flat Rack.
Our services
(1) OEM Manufacturing welcome: Product, Package...
(2) Sample order
(3) We will reply you for your inquiry in 24 hours.
(4) After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
(1) Q:Are you a Manufacturer or Trading company?
A: We are trailer manufacturer and we have our own factory in Shandong province, China. You are welcomed to visit our factory to check our various trailers.
(2) Whats your MOQ?
One unit trailer.We suggest two trailers one time to save the freight.
(3) Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
(4) Q: Can I get a sample or order 1 unit?
Yes, you can order 1 unit and our MOQ is 1 set.
(5) Q: How about your after-sale service?
We provide trailers and truck parts, technical support, etc for your all life once we have reached the deal and placed order from us.
