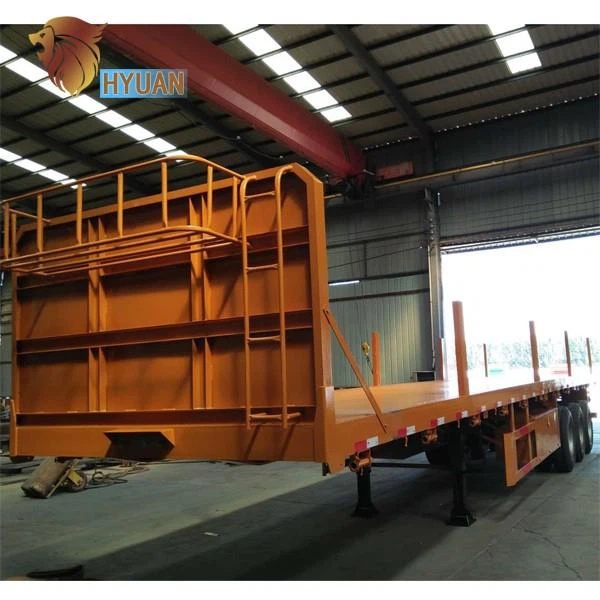

40ft Column Flatbed Trailer Container Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
The flatbed trailers are not only used for steel and containers, but also items which can be loaded with pallets. LUYI can offer different flatbed trailers according to customer demand and national regulations. This trailer is usually used in ports. There are several box locks to fix the container in place. The trailer also could be used to transport cargo if the cargo can be fixed on the plate. The weight of this trailer is less than that of other types, so it is convenient to transport objects.
Product specification
|
Function |
Carry 40ft or 2*20ft container or other stuff |
|
Overall Dimension (Lx W x H) (mm) |
12500*2500*1550(optional) |
|
Tare Weight(KG) |
6350 |
|
Loading Weight(KG) |
40000 |
|
Total Weight(KG) |
46350 |
|
Axle |
13Ton Axle |
|
Axle Number |
Three |
|
Wheelbase(mm) |
7450+1310+1310 |
|
Suspension system |
Mechanical Leaf Spring Suspension |
|
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
|
The material of Main beam |
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
|
Side beam |
Q235 16# channel steel |
|
Platform plate |
3mm Diamond plate |
|

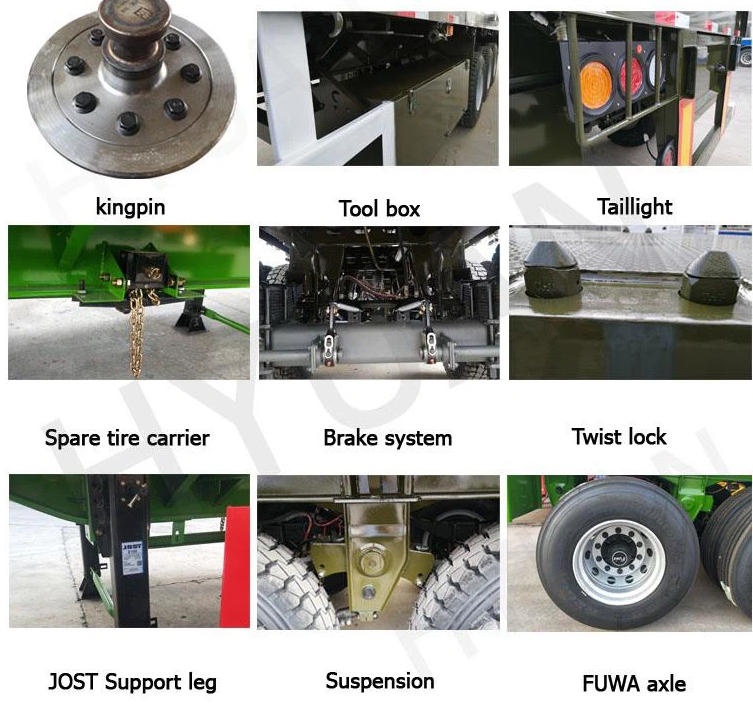

Container Twist Locker |
12pcs container lock |
|
Tire Type and quantity |
12R22.5 12units |
|
Rim |
9.00-22.5 |
|
Traction Pin |
2" or 3.5" |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Landing Gear |
28ton Chinese brand,double speeds |
|
Brake system |
Dual Line braking system |
|
Brake air chamber |
Six double chamber |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
|
Painting |
Color as customers requirement |
|
Packing |
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint |
|
Delivery way |
Transfer to Qingdao/Tianjin/Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
Product feature and application
(1) Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
(2) Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
(3) Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
(4) Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.
(5) State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.

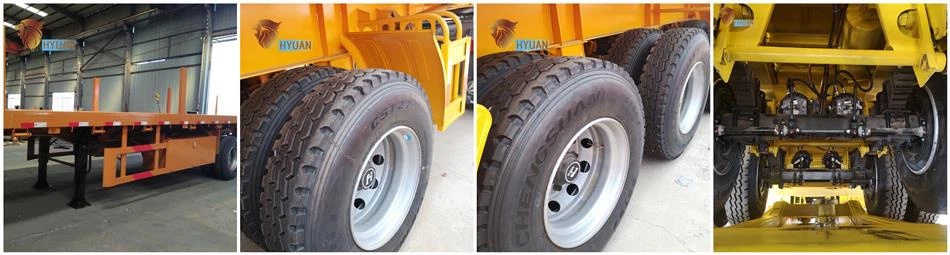

Production details
(1) The series vehicle use through-going beam structure, has frame structure with flat type and goosen neck type, also has high integral strength, small weight, beautiful appearance, safe and reliable operation.
(2) The series vehicle use advanced manufacture technology , makes automatic submerged-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.
(3) The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
For transportation, we have best logistic partners,we will recommend the economic and safety method to our client.
(1) Normally use Bulk Carrier Vessel or RoRo Vessel.
(2) For some types like chassis trailer,flatbed trailer or other short trailers etc we could use 40HQ, 45FT container and Flat Rack.
