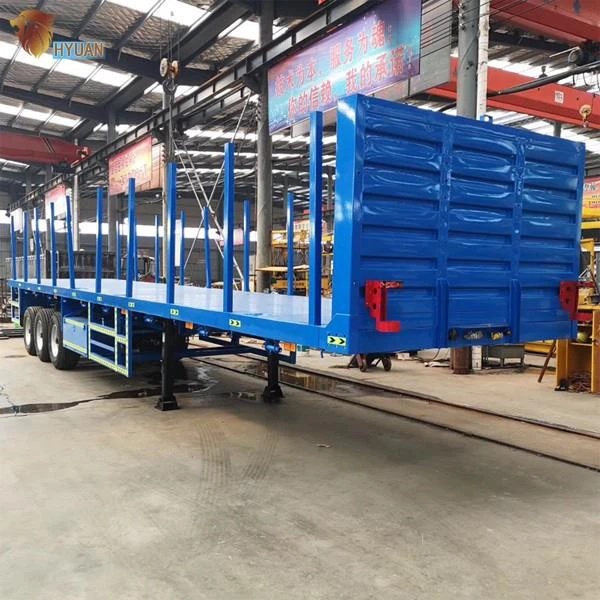

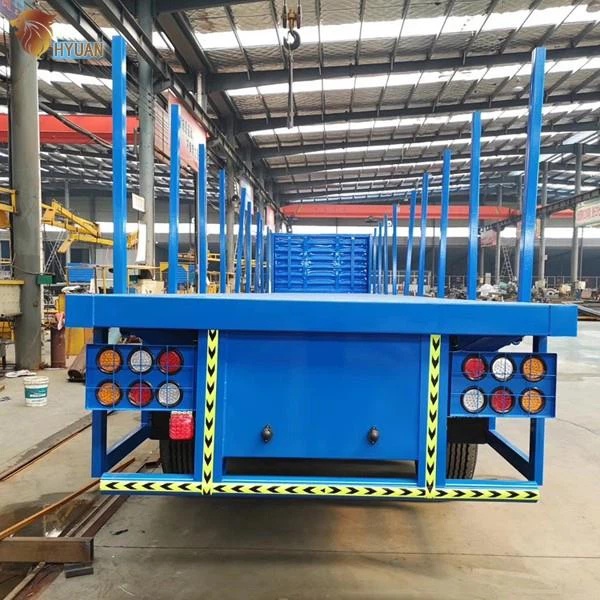

3 Axles Column Flatbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Flatbed Trailer for carrying 40ft container, 20ft container and other dry bulk cargo.
In general, the flatbed trailer suit for carrying loads 40 ton~60 tons weight. Actually, flatbed trailer is the simplest trailer for dry bulk cargo, we also can offer other model according to your different requirements, extendable flatbed trailer for transporting wind blade, steel pipes and fittings and other long items, flatbed trailer with upright column for log loading, etc.
Product specification
|
Overall dimension |
12500 *2500 * 1550mm((According to customer demand)) |
|
Loading capacity |
30-150T |
|
Tare Weight |
6.5-10T |
|
Axle |
2 axles/ 3axles /4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua |
|
Rim |
8.00-20/8.5-20/8.8-20 China Brand |
|
Tire |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
|
Suspension |
Mechanical suspension(German Type or America Type) or Air suspension |
|
Spring leaf |
90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional) |
|
Wheel base (mm) |
6880+1310+1310. |
|
Kingpin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
|
Steel Spring |
8/8/8, 10/10/10, 12/12/12 pieces per axle |
|
The material of Main beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
|
Side beam |
16mm-25mm channel steel (Material is Q235 carbon steel) |
|
Brake chamber |
6 double brake chamber |
|
Landing gear |
JOST/FUWA/Yahua brand 28T(two speed or single speed) |
|
Twist Locks |
Four, Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
|
Platform plate |
3mm Checkered steel plate |
|
Brake system |
Dual Line braking system |
|
Electrical system |
24V, 7 pin socket, One set 7-core standard Cable |
|
Valve |
WABCO/KANGJIAN valve |
|
Tool box |
1set standard tool box( waterproof type) |
|
Spare tire carrier |
1 pieces( Patent type) |
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc |
|
Painting |
Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ container |
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
(1) 11 years manufacture experience, good at controlling our products quality. Choosing us, you choose professional supplier.
(2) The good faith management is our philosophy,and welcome visits our company at any time.
(3) Cording to your order, we provide suitable trailer.
(4) We also provide rational packing and shipping program, let shipment save money and security. Just trust us, you will get a satisfactory answer.
Deliver,shipping and serving
For the flatbed semi trailer cut the rear part then put inside 40ftHQ container which can save a lot of freight, this method is very popular for transport the flatbed trailer but when you receive the trailer you need to welded them together so if you choose this method need to confirm whether you can arrange welded them after the container arrived.
