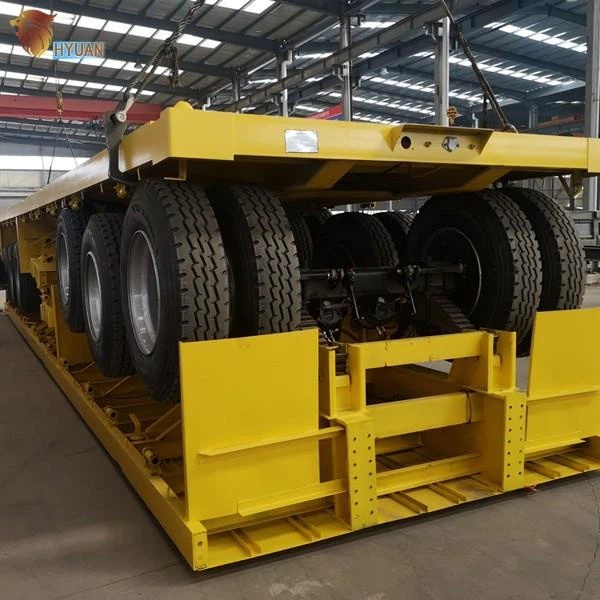

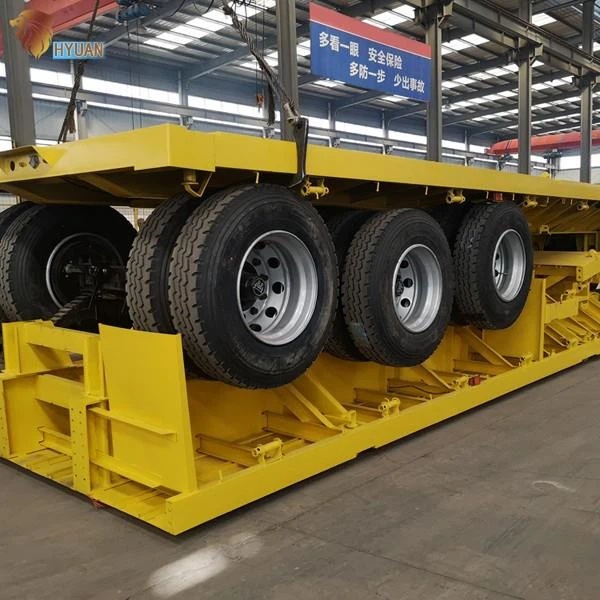

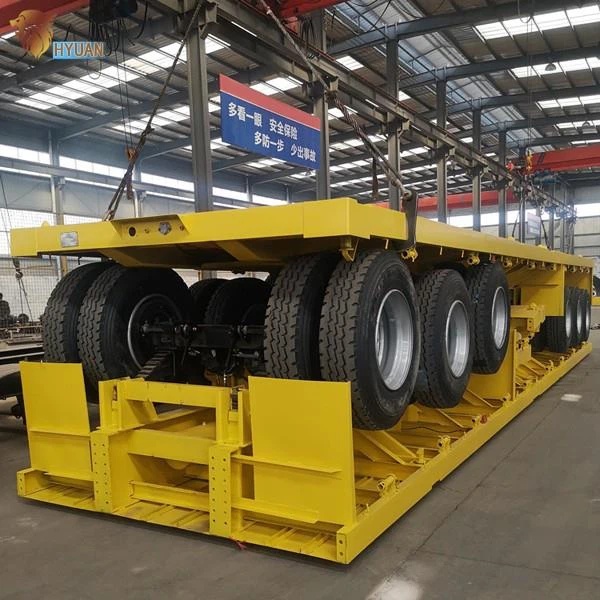

40Ton Straight Girder Flatbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Our Semi trailer product has advanced technology and reliable performance.
All parts use the products of foreign and domestic famous producers, are purchased, inspected and used strictly according to the requirements of quality system documents, and ensure good performance of whole vehicle
Product specification
|
Dimensions |
13000 to 16000mm x 3000 x 1750mm |
|
Loading Capacity |
40T-50T |
|
Floor Thickness |
2mm |
|
Main Beam Height |
500mm |
|
Upper Thickness |
8mm |
|
Middle Thickness |
6mm |
|
Down Thickness |
10mm |
|
Side Beam |
140mm Channel Steel |
|
Axle Weight Load |
13T |
|
Axle Brand |
Fuwa brand, 3 axles |
|
Suspension System |
Mechanical Suspension, Air Suspension, Bogie Suspension |
|
Wheel Rim |
8.25*22.5/9.00*22.5 |
|
Tire |
11R22.5 |
|
King Pin |
JOST 2.0 inch (50mm)/3.5 inch (90mm) |
|
Landing Gear |
28T |
|
Twist Locks |
4, 8, 12pieces (Lifting type or Twist Screw type), optional |
|
Brake System |
WABCO Valve with big chamber |
|
ABS |
Customer optional |
|
Lights |
Turning Light, Side Marker Light, Tail Light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool Box |
Customer optional |
|
Spare Tire Carriers |
Customer optional |
|
Painting Color |
Common China made Paint/Polyurethane paint, Color optional |
|
Customization |
According to your request |
Product feature and application
(1) Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics;
(2) Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time;
(3) Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative;
(4) Advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance;

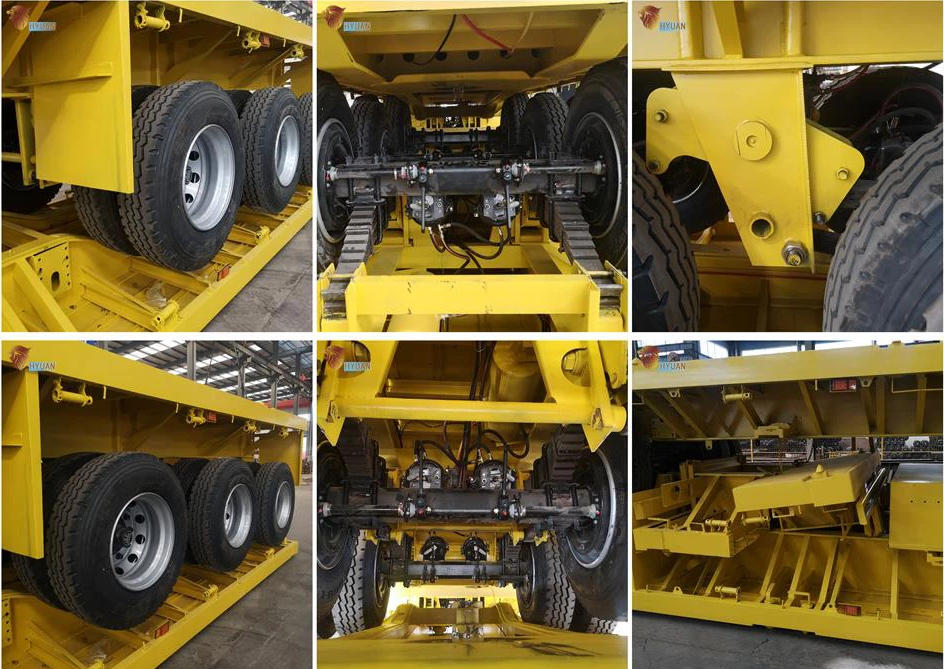

Production details
(1) This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body / BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
(2) The capacity is for 40tons , we can manufacture it according to your needs.
(3) The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
(1) With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
(2) An professional team which is experienced with international market and has strong technical capability to customized cost effective.
(3) Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;
(4) Your order could be a priority in our company whenever your order is small/medium size order or your low price.
Deliver,shipping and serving
(1) By 40HQ or 45HC container, and one container can carry 2 trailers.
(2) By Bulk Ship or RORO Ship, 3 or 4 units trailers can be shipped together to save freight
