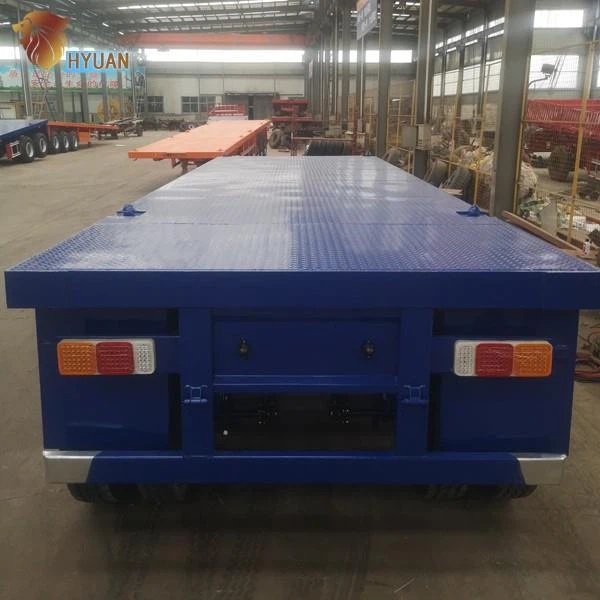

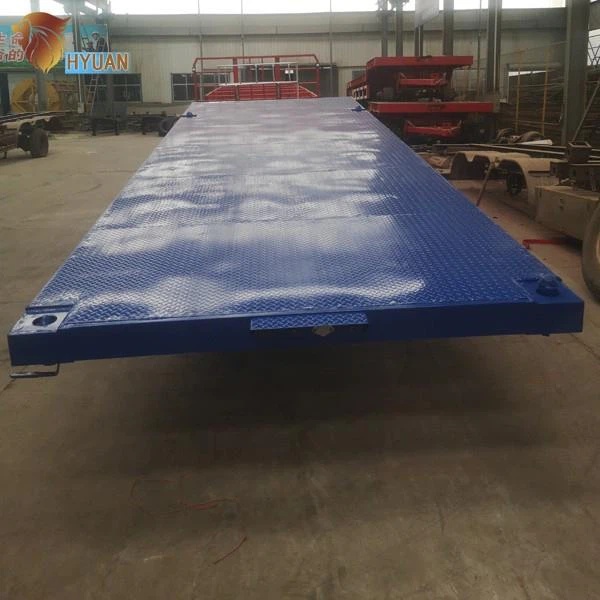

20ft Straight Girder Flatbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
(1) Over heavy cargo transportation equipments
(2) Large Hydraulic gooseneck multi power steering axles heavy duty modular trailer (special vehicle) container semi trailer, platform semi trailer
(3) Wind power transportation equipments,Large construction machinery transportation, Bridge and abnormal shape cargo transportation.
(4) Self-walking design
Product specification
|
Name |
HYUAN flatbed semi trailer |
|
Overall dimension |
12500 *2500 * 1550mm（According to customer demand） |
|
Loading capacity |
30-150T |
|
Tare Weight |
6.5-10T |
|
Axle |
2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua |
|
Rim |
8.00-20/8.5-20/8.8-20 China Brand |
|
Tire |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
|
Suspension |
Mechanical suspension(German Type or America Type) or Air suspension |
|
Spring leaf |
90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional) |
|
Wheel base(mm) |
6880+1310+1310. |
|

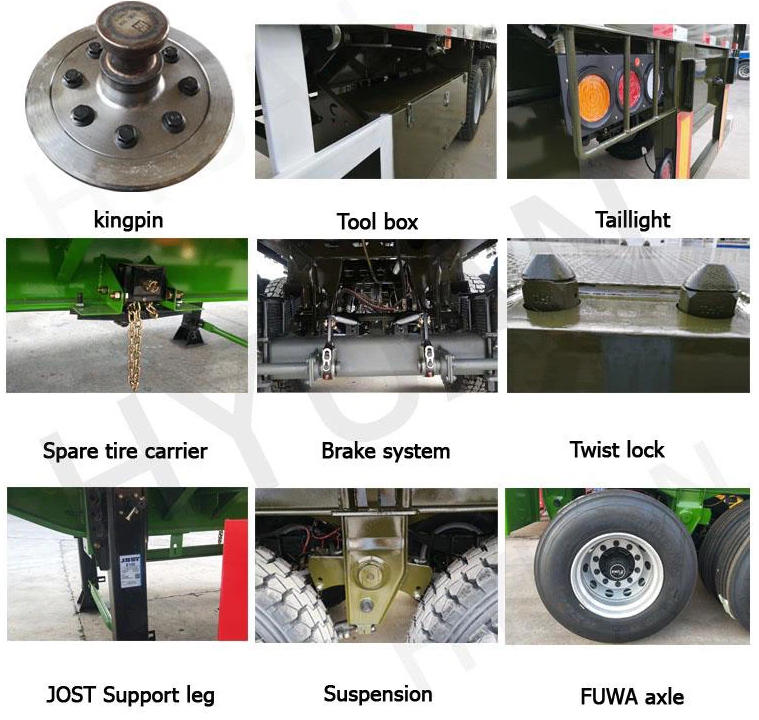

Kingpin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
|
Steel Spring |
8/8/8, 10/10/10, 12/12/12 pieces per axle |
|
The material of Main beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
|
Side beam |
16mm-25mm channel steel (Material is Q235 carbon steel) |
|
Brake chamber |
6 double brake chamber |
|
Landing gear |
JOST/FUWA/Yahua brand 28T(two speed or single speed) |
|
Twist Locks |
Four ,Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
|
Platform plate |
3mm Checkered steel plate |
|
Brake system |
Dual Line braking system |
|
Electrical system |
24V,7 pin socket,One set 7-core standard Cable |
|
Valve |
WABCO/KANGJIAN valve |
|
Tool box |
1set standard tool box(waterproof type) |
|
Spare tire carrier |
1 pieces(Patent type) |
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc |
|
Painting |
Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ container |
Product feature and application
(1) The flatbed semi-trailer type walking structure uses high-strength international steel material; the whole trailer has light weight and guarantees its resistance to twisting, shock and bounce, and meets different road carrying capacity.
(2) The series of semi-trailer frames are of the beam-type structure, and the longitudinal beams are of straight or gooseneck type. The web height is from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot peened, the beam is inserted into the stringer and welded.
(3) The series type dry plate spring and suspension support are composed of reasonable structure, strong rigidity and strength, and are used to support load buffering.

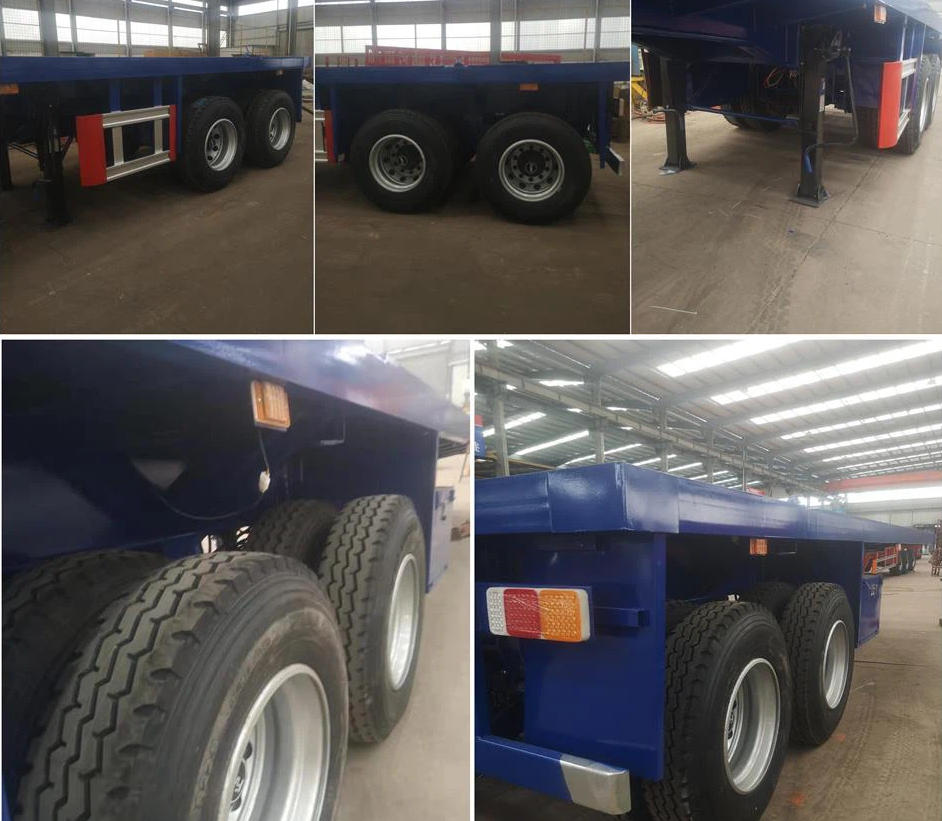

Production details
(1) The flatbed semi-trailer type walking structure uses high-strength international steel material; the whole trailer has light weight and guarantees its resistance to twisting, shock and bounce, and meets different road carrying capacity.
(2) The series of semi-trailer frames are of the beam-type structure, and the longitudinal beams are of straight or gooseneck type. The web height is from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot peened, the beam is inserted into the stringer and welded.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
● Reply your inquiry in 12 working hours;
● Experienced staffs answer all your questions;
● Customers design is available for certain products(OEM);
● Spare parts for all types of engine machinery with reasonable price;
● Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.

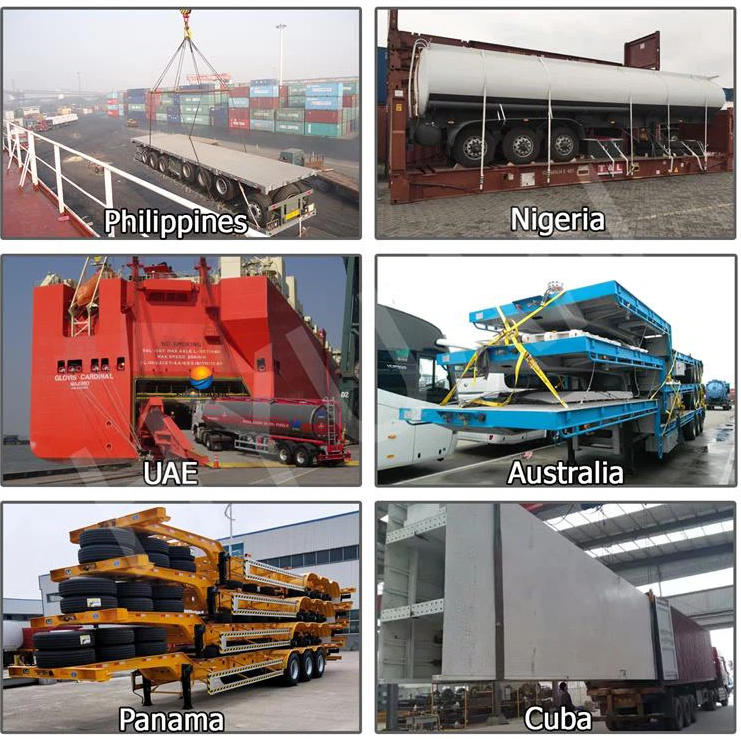

Deliver,shipping and serving
Shipping method for Best price Factory Sale 2 axle s Tri-axle 20ft 40 feet 40ton container semi flat bed flatbed trailer with container lock
(1) By 40HQ or 45HC container, and one container can carry 2 trailers.
(2) By Bulk Ship or RORO Ship, 3 or 4 units trailers can be shipped together to save freight
