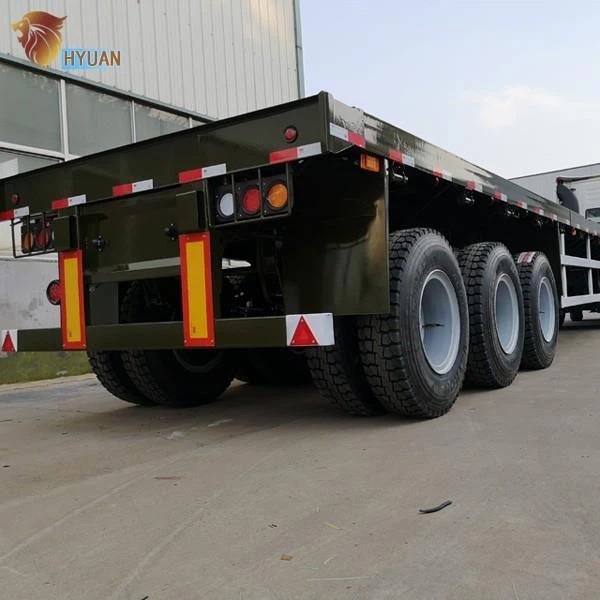

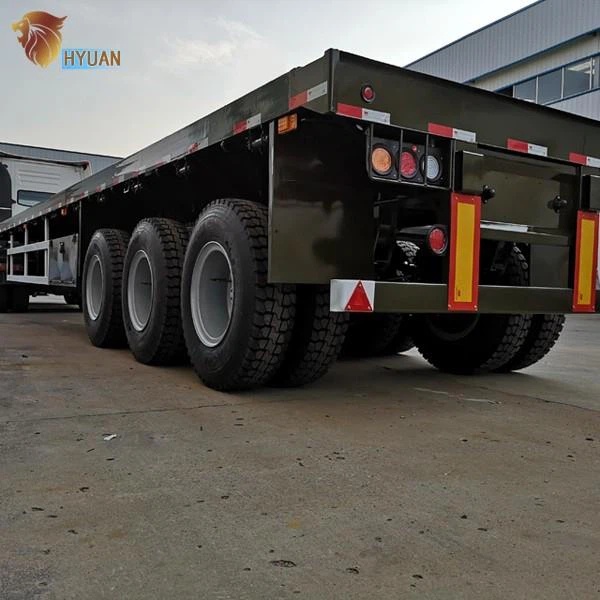

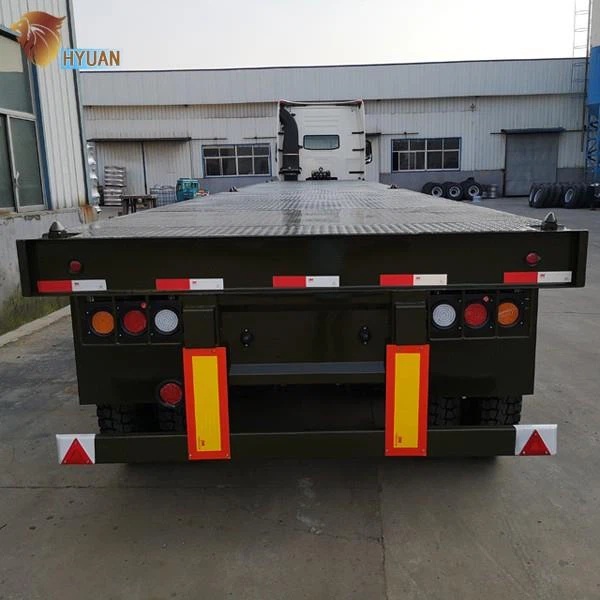

3axles Straight Girder Flatbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
(1) Over heavy cargo transportation equipments
(2) Large Hydraulic gooseneck multi power steering axles heavy duty modular trailer (special vehicle) container semi trailer,platform semi trailer
(3) Wind power transportation equipments,Large construction machinery transportation, Bridge and abnormal shape cargo transportation.
(4) Self-walking design
Product specification
|
Flatbed semi trailer Parameter |
|
|
Payload |
40000kg-60,000kg |
|
Tare weight |
70,00kg-9000kg |
|
Dimension |
7200/12500x2500x1560mm |
|
Wheel base |
1310mm |
|
Fabric |
|
|
Main beam |
Beam height 500mm, upper plate-14mm, bottom plate double 8mm, middle plate-16mm, made of Q345 steel |
|
Cross/side beam |
Q235, channel steel |
|
Floor |
3 mm diamond steel plate |
|
Painting |
Complete chassis sand blasting to clean rust,coat of anti-corrosive prime,2coats of finalpaints |
|
Tool box |
1piecs |
|
Twist locks |
4/12 piece |
|
Welding |
Long member beams be CO2 Arc welded by 80% penetration on external side and bead.All |
| other parts welding with MAG process | |
|

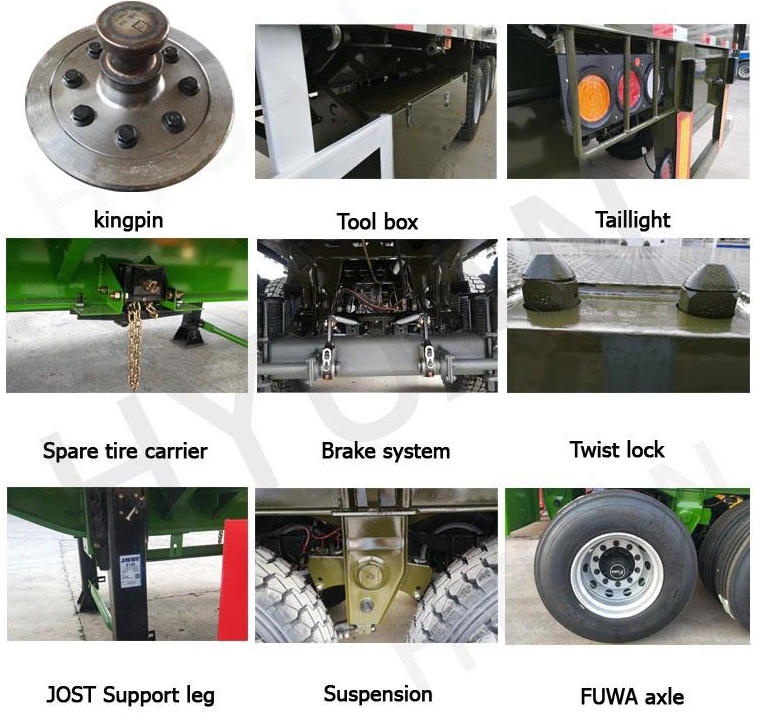

Parts |
|
|
Axle |
3x13/16ton FUWA /BPW Axle |
|
Suspension |
Mechanical suspension |
|
Leaf spring |
90(W)mm*13(thickness)mm*10Layers |
|
Tyre |
11.00R20 /12R22.5 /315/80R22.5 |
|
Rim |
8.0-20/9.0-22.5 |
|
King pin |
JOST King Pin bolt-in type 50mm |
|
Landing gear |
Double speed,external 28tons, |
|
Brake system |
WABCO valve Dual line braking system |
|
Electrical system |
1 voltage 24v 2 Receptacle:7ways(7wire harness), |
|
Tail lamp with turn signal,brake light&reflectors |
|
Product feature and application
(1) The flatbed semi-trailer type walking structure uses high-strength international steel material; the whole trailer has light weight and guarantees its resistance to twisting, shock and bounce, and meets different road carrying capacity.
(2) The series of semi-trailer frames are of the beam-type structure, and the longitudinal beams are of straight or gooseneck type. The web height is from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot peened, the beam is inserted into the stringer and welded.
(3) The series type dry plate spring and suspension support are composed of reasonable structure, strong rigidity and strength, and are used to support load buffering.

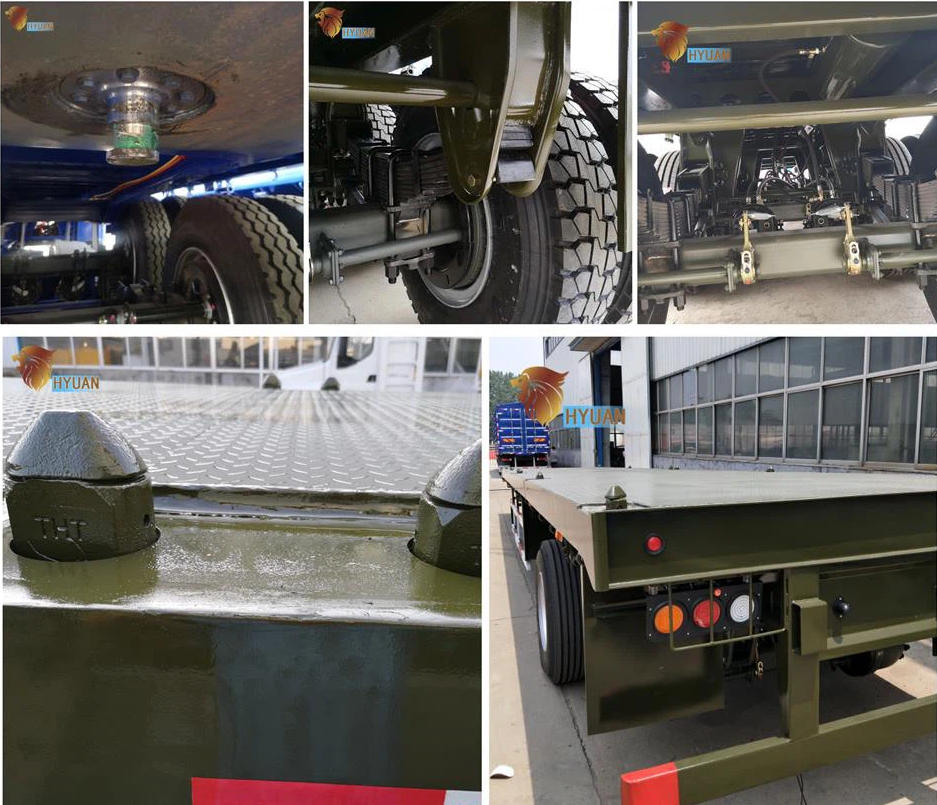

Production details
(1) The flatbed semi-trailer type walking structure uses high-strength international steel material; the whole trailer has light weight and guarantees its resistance to twisting, shock and bounce, and meets different road carrying capacity.
(2) The series of semi-trailer frames are of the beam-type structure, and the longitudinal beams are of straight or gooseneck type. The web height is from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot peened, the beam is inserted into the stringer and welded.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
● Reply your inquiry in 12 working hours;
● Experienced staffs answer all your questions;
● Customer’s design is available for certain products(OEM);
● Spare parts for all types of engine machinery with reasonable price;
● Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
Deliver,shipping and serving
Nude packing. Small type can be put into 20 '' GP OR 40'' GP; Big type can be carried by bulk carriers or ro-ro ship according to customer's requirements.
Here are separately 4 shipping ways
Bulk---Container---Frame---RO-RO
