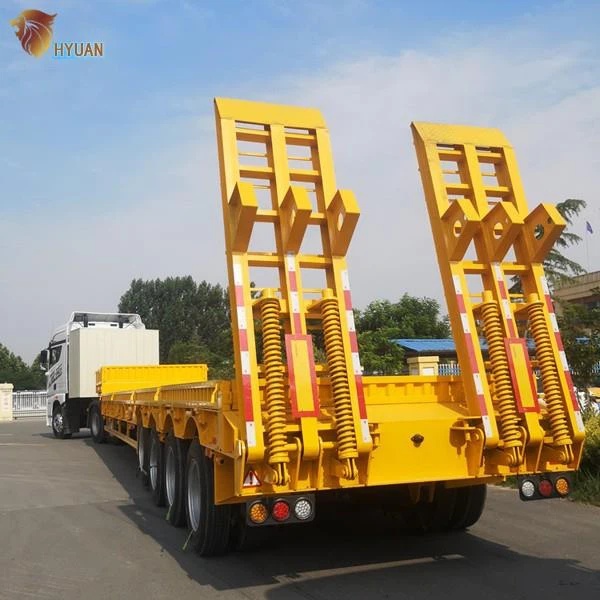

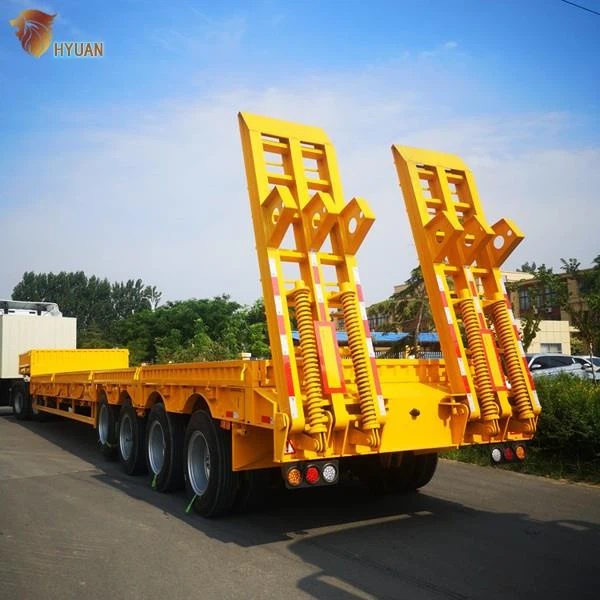

4 Axles Heavy Duty Low Bed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
It is applicable to the transportation of various kinds of steel products for various mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment and machines.
Product specification
|
Dimension |
15000x3200x1300(board height) |
|
Tare weight |
17000kg |
|
Loading Capatity |
60-120 Tons |
|
Axle |
13T/16T, BPW/FUWA/Chinese brand |
|
Axle number |
Two,Three or Four and more |
|
Rim |
6.5-20 / 7.5-20 / 8.00-20 / 8.5-20 |
|
Tire |
8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
|
Suspension |
Mechanical supension（American or German）or air supension |
|
King Pin |
JOST brand 2.0 or 3.5 inch (bolted or welded type) |
|
Landing Gear |
JOST, FUWA or YAHUA brand 28T |
|
Wheelbase |
7180/6680/6260+1310+1310mm,Or other |
|
Main Beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
|
Side Beam |
16mm-25mm channel steel (Material is Q235 carbon steel) |
|
Platform plate |
5/6/7 mm Diamond Plate |
|
Brake system |
Dual Line braking system |
|
ABS system |
optional |
|
Ladder |
Manual or hydraulic automatic |
|
Electrical system |
24V,7 pin socket,One set 7-core standard Cable |
|
Tool box |
1 set(waterproof type) |
|
Spare tire carrier |
1 set(Patent type) |
|
Rmark |
The specification just for your reference, we can bulid trailer as your specific requirements |
Product feature and application
The main beam of the trailer is various according to the payload of the semi-trailers that the customers required. The standard type that we usually use is the 16/18/10 mm for the 60-ton low bed trailer. The main beam adopts the Q345 steel and automatic welding to make the main beam strong enough to suit the payload.
Rear fence is made by strong carbon steel for the trailer safety. About the shipping, there is a special design for the trailers in order to reduce the cost of shipping. Like the front of the rear. And we have the special part for the shipping arrangement which can provide the professional support to reduce the cost of the shipping.

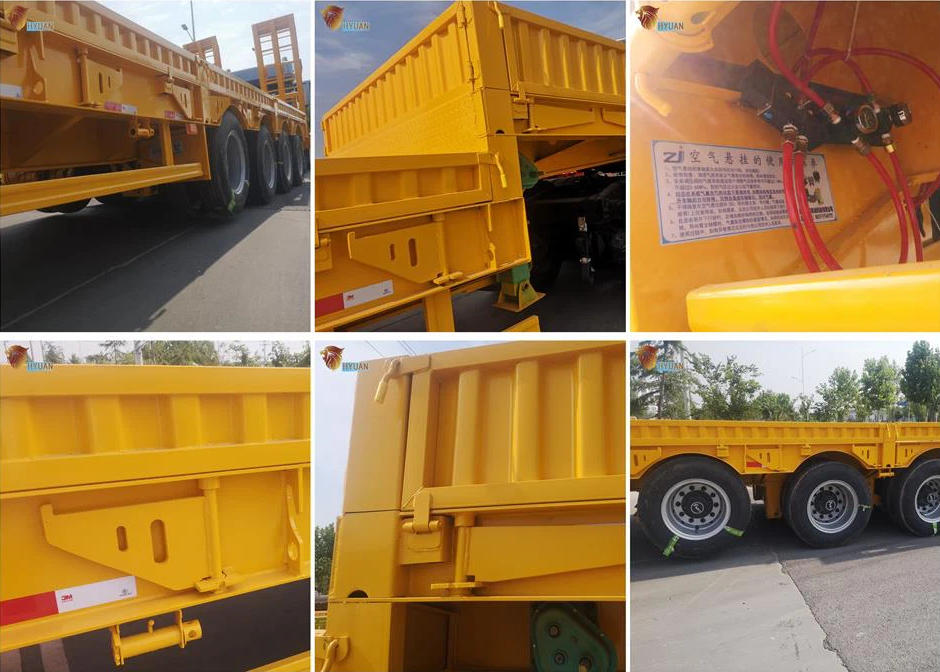

Production details
● Semi trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance;
● Semi trailer frame adopts automatic submerged arc welding, beautiful weld seam and reliable performance;
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Bulk cargo ship or Ro ro ship.
If you have Welding ability and the width is less than 2.5M,We can choose container ship to transport.
Our Services
(1) Reply your inquiry in 12 working hours;
(2) Experienced staffs answer all your questions;
(3) Customer’s design is available for certain products(OEM);
(4) Spare parts for all types of engine machinery with reasonable price;
(5) Different kinds of semi trailer can be provided with competitive price.
FAQ
What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification the quality is 100% guaranteed
What’s your minimum quantity?
Min.1set
How to trust us?
The good faith management is our philosophy, and you are welcome to visit our company at any time.
What’s your payment term?
--- T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
--- L/C: 100% irrevocable credit of letter.
