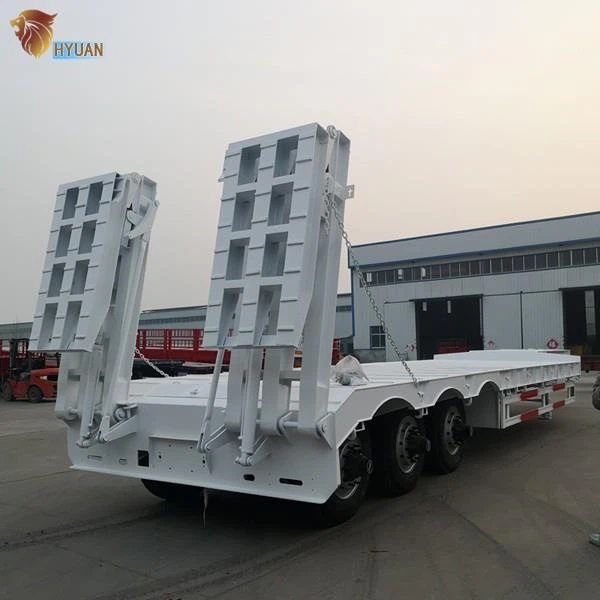

Excavator Heavy Duty Low Bed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Low-bed semi-trailers are commonly used to transport heavy-duty vehicles such as tractors, buses, special purpose vehicles, rail vehicles, mining machinery, forestry machinery, And other heavily loaded goods, the lower the center of gravity, the better stability and safety, and the greater the ability to transport super-tall loads and to pass overhead obstacles.
Product specification
|
Total size |
13000*3000*1650mm |
|
Working size (LxWxH) |
9000*3000*1300mm |
|
Curb Weight(KG) |
7000 |
|
Loading Weight (KG) |
60000 |
|
Departure Angle |
16 |
|
Axle Brand |
3*13 ton FUWA brand |
|
Axle Number |
Three |
|
Wheelbase (mm) |
8580+1310+1310 |
|
Suspension system |
Mechanical Leaf Spring Suspension |
|
Leaf Spring |
90(W)mm*13(Thick)mm*10 Layer 10/10/10 leaf spring suspension |
|
The material of Main beam |
Q345B carbon steel,the height of the beam is 500 mm, upper plate is 16mm, down plate is 18mm, middle plate is 10 mm. |
|
Side Beam Q235 |
16# channel steel |
|

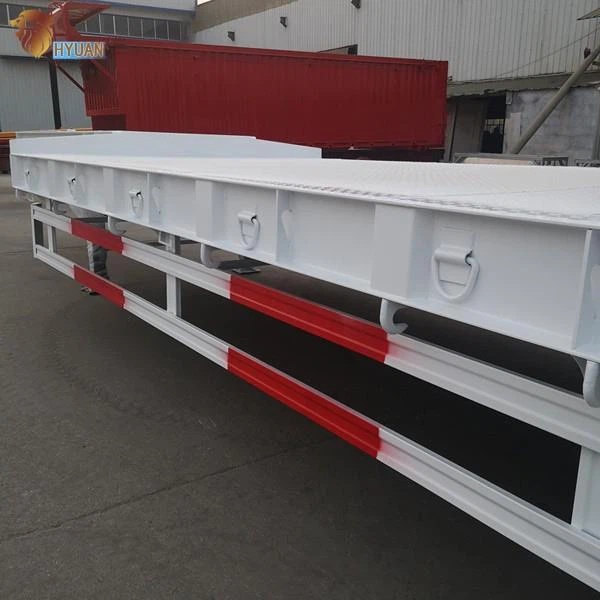

Platform plate |
3mm Diamond plate |
|
Tire Type and quantity |
11.00R20 12units Triangle Brand |
|

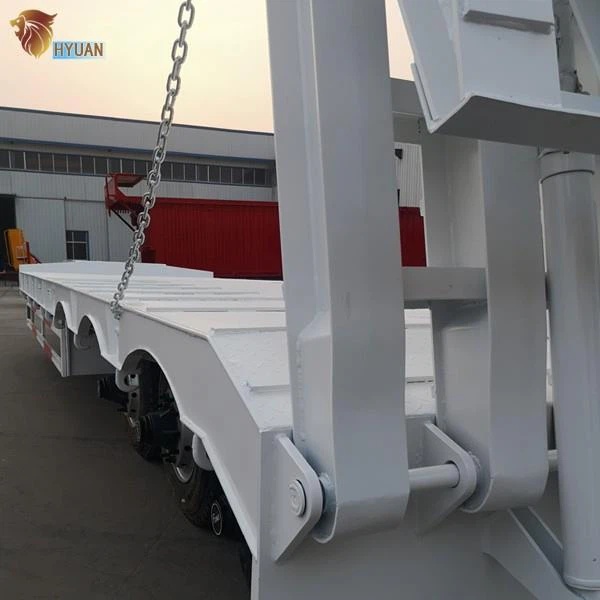

Ladder |
With Ladder |
|
Traction Pin |
2” or 3.5” |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|

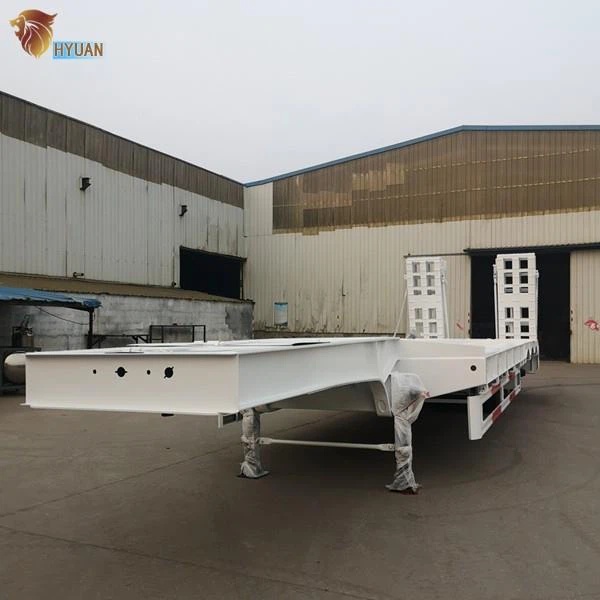

Landing Gear |
28Ton standard |
|
Brake system |
WABCO RE6 relay valve;T30/30 spring brake chamber; 40L air tanks, Dual Line braking system |
Product feature and application
- It is suitable for various kinds of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment and various kinds of steel transportation.
- The loading size can be designed according to the customer's requirements in order to meet various special goods transportation.
- The frame and platform is low, which guarantees the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel
- The loading capacity,overall size and other configurations can all be customized as required.

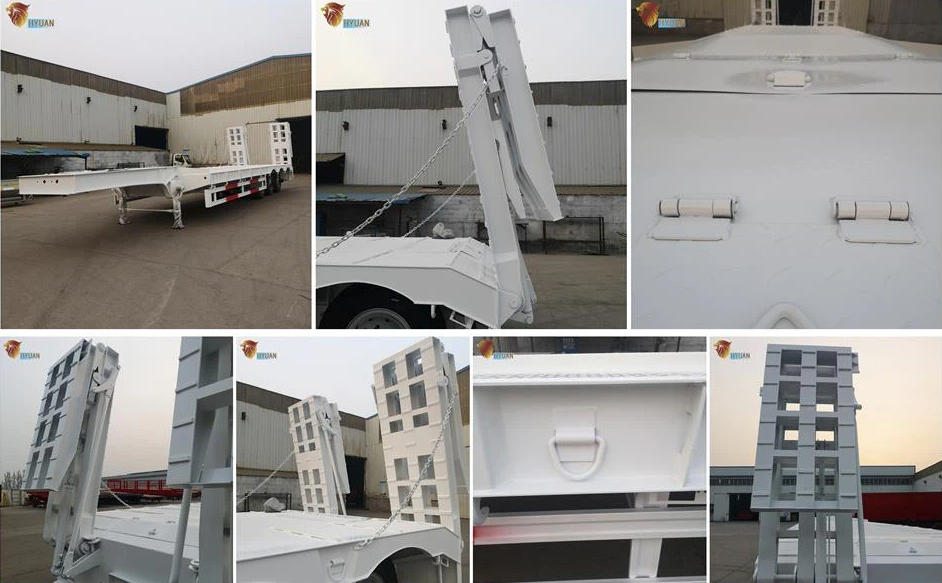

Production details
● Lowbed semi trailer Suitable for road construction equipment, large tanks, heavy machinery;
● Semi trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance;
● Semi trailer frame adopts automatic submerged arc welding, beautiful weld seam and reliable performance;
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Delivery Details: 15-35 days after receiving 30% deposit
