3Ton Electric Forklift
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Ergonomically designed the controlling parts for the excellent combination, and operator comfort and ease of operation with excellent vision, more and more reducing the fatigue of drivers.
High power, positive powered performance, distinguished performance for excellent starting in low temperature,. The indexes of noise, vibration, exhausting reach the standard I of European.
Product specification
|
Characteristics |
Model |
SF30Y |
Unit |
||
|
Capacity |
3000 |
kg |
|||
|
Load center |
500 |
mm |
|||
|
Power type |
Diesel/Gas/LPG |
|
|||
|
Dimensions |
Lift height |
3000 |
mm |
||
|
Freelift height |
145 |
mm |
|||
|
Fork size |
1070×125×45 |
mm |
|||
|
Mast tilt angle |
6/12 |
deg |
|||
|
Front load distance |
477 |
mm |
|||
|
Dimensions |
Total length |
2865 |
mm |
||
|
Total width |
1226 |
mm |
|||
|
Lift height(mast lowered) |
2126 |
mm |
|||
|
Lift height(mast raised) |
4235 |
mm |
|||
|
Safety frame height |
2140 |
mm |
|||
|
Min.turning radius |
2400 |
mm |
|||
|
Min.right angle aisle width |
2100 |
mm |
|||
|
Perfomance |
Hydraulic |
19/20 |
|||
|
Mechanical Gear I |
8.8/8.8 |
||||
|
Mechanical Gear II |
20/20 |
||||
|
Chassis |
Tyres |
Front |
28X9-15-14PR |
|
|
|
Rear |
6.50-10-10PR |
|
|||
|
Tread |
Front |
1000 |
mm |
||
|
Rear |
980 |
mm |
|||
|
Wheelbase |
1700 |
mm |
|||
|
Ground clearance(with/without load) |
Mast |
110/135 |
mm |
||
|
Frame |
130/135 |
mm |
|||
|
Engine |
Model |
NISSAN K25 |
|
||
|
Relted power |
37.4/2300 |
kW |
|||
|
Rated torque |
176.5/1600 |
||||
|
Cylinder number |
4 |
||||
|
BoreXStroke |
89.0X100 |
||||
|
Displacement |
2.488 |
||||
|
Oil tank capacity |
50 |
||||
Product feature and application
1) Super low Non-slip pedal
2) High-strength overhead guard
3) Adjustable steering wheel and safety seat.
4) Humanized righ- side hydraulic opeartion handle and emergency power- off button.
5) Full-view mast and fork carriage ensure operator's excellent operation vision.

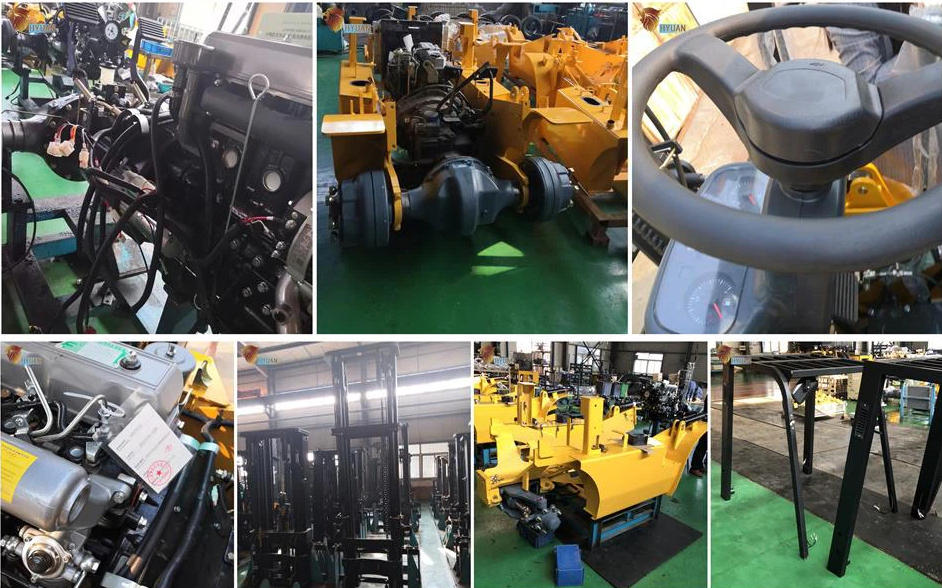

Production details
--Model CPCD30,load capacity3000kg.
--Automatic transmission, 3M 2stage Mast.
--China engine XINXHAI C490
--1070mm fork,Pneumatic tyes.
--Safety seat with steady belt,warning light.
--Free tool box,spare parts.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
