Product Introduction
Foklift use of advanced Human-Computer Engineering Technology, Engine suspension damping devices, drive axle flexibility to connect, configuration low input torque steering, made it more easy to turn in situ; Adjustable steering wheel can adjust according to the operating environment situation,shape of operator,will not fell fatigue under longtime working; Wide leg space,make operator more comfortable; Suspension design of high-intensity whole hood, built-in advanced sound-absorbing insulation materials.
Product specification
|
Characteristics |
Model |
SF70 |
Unit |
|||
|
Capacity |
7000 |
kg |
||||
|
Load center |
600 |
mm |
||||
|
Power type |
Diesel |
|||||
|
Dimensions |
Lift height |
3000 |
mm |
|||
|
Free lift height |
195 |
mm |
||||
|
Fork size |
1220×150×50 |
mm |
||||
|
Mast tilt angle |
6/12 |
deg |
||||
|
Front load distance |
627 |
mm |
||||
|
Dimensions |
Total length |
4840 |
mm |
|||
|
Total width |
1995 |
mm |
||||
|
Lift height(mast lowered) |
2500 |
mm |
||||
|
Lift height(mast raised) |
4420 |
mm |
||||
|
Safety frame height |
2450 |
mm |
||||
|
Min.turning radius |
3360 |
mm |
||||
|
Min.right angle aisle width |
3040 |
mm |
||||
|
perfomance |
Hydraulic |
|
|
|||
|
Mechanical Gear I |
- |
|
||||
|
Mechanical Gear II |
26/28 |
|
||||
|
|
Lift speed(with load) |
450 |
|
|||
|
|
Max gradeability |
20 |
|
|||
|
|
Service weight |
9400 |
|
|||
|
Chassis |
Tyres |
Front |
8.25-15-14PR |
|||
|
Rear |
8.25-15-14PR |
|||||
|
Tread |
Front |
1470 |
mm |
|||
|
Rear |
1700 |
mm |
||||
|
Wheelbase |
2250 |
mm |
||||
|
Groundclearance(with/without load) |
Mast |
200 |
mm |
|||
|
Frame |
- |
mm |
||||
|
Engine |
|
Model |
CY6BG332-36 |
|||
|
Relted power |
82.4/2200 |
kW |
||||
|
Rated torque |
416/1500 |
|
||||
|
Cylinder number |
6 |
|
||||
|
BoreXStroke |
108X125 |
|
||||
|
Displacement |
6.87 |
|
||||
|
Oil tank capacity |
140 |
|
||||
|
Type |
Hydraulic |
|
||||
Product feature and application
Reasonably stable low center of gravity
Computer simulated the most reasonable low center of gravity, and use of high-strength steel to weld the body of the forklift, ensure the reliability of transportation.
Security
Lifting system gantry wide field of vision, dramatically improved the vision of drivers, to make sure the safety and speed of operation. Pipeline system provided a safety device, even if the pipeline ruptured, door frame will not be out of control.
Cooling system
Using large-capacity copper water tanks, international advanced cooling technology, to ensure that the vehicle has good heat dissipation.
Electrical System
Using the latest technology of the harness and waterproof plug-ins , multi-fuse fuse layout, greatly enhanced the safety and stability of circuit system.

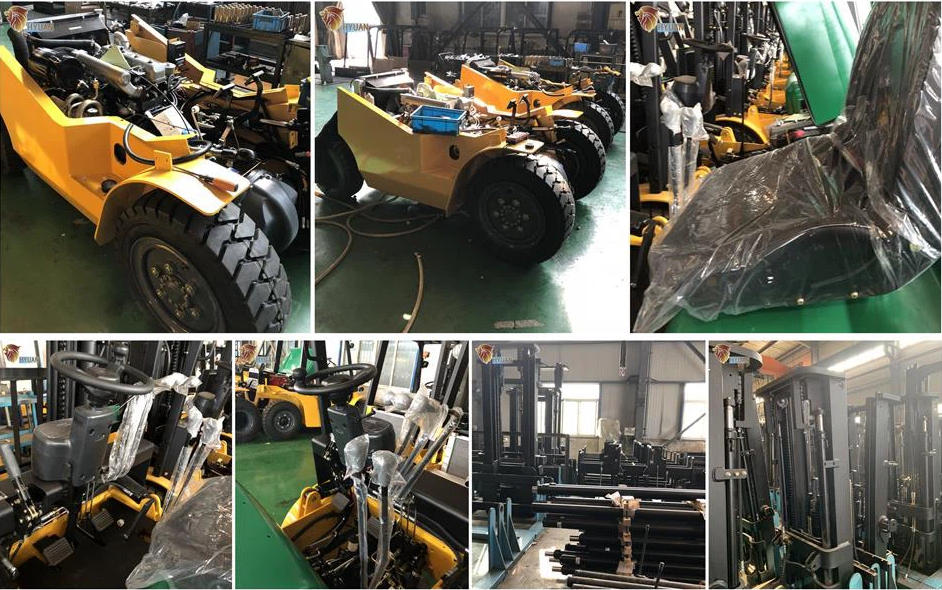

Production details
Integrated central control box the reliability of electric system
Ergonomical design ensures best operation
Energy-saving hydraulic system decreases fuel consumption
High-quality hydraulic hoses, no oil leakage

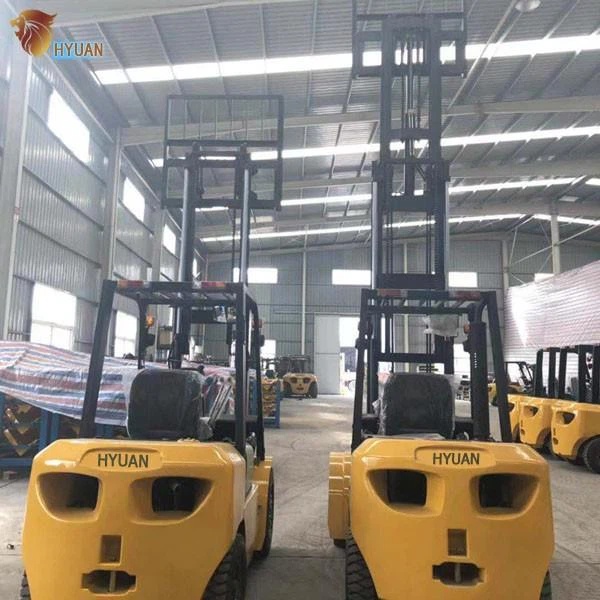

Wide-view mast design improves the productivity and safety
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Packing by Container, In Bulk, Flat rack.
Loading within a week after receiving the deposit.
