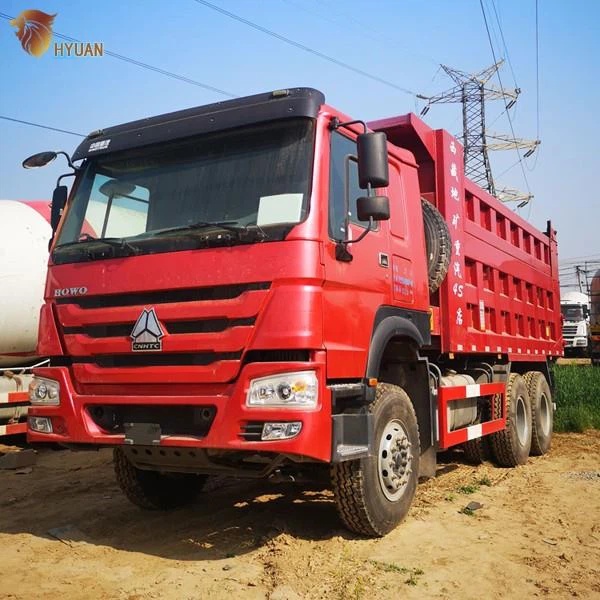

Used 6X4 Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
The dump truck is mainly used in engineering construction. It works with the excavator, the loader, the band conveyor, and other construction machinery together, making one whole line for loading, transporting, and discharging.
The tipper mainly used to transport soil, sand and bulk materials.
Product specification
|
Production Name |
6x4 Dump Truck |
|
|
Dimension(Lx W xH)(mm) |
8614x2496x3450 |
|
|
Approaching angle/Departure angle(°) |
16/70 |
|
|
Overhang(front/rear) (mm) |
1500/700,725 |
|
|
Cargo thickness(mm) |
Bottom:8mm, Side:6mm |
|
|
Cargo body size(L*W*H, mm) (mm) |
5600x2300x1500 |
|
|
Curb weight(kg) |
11930 |
|
|
Lift type of Carriage |
middle lifting Or Front Lifting |
|
|
Loading Weight(kg) |
40000 |
|
|
Fuel tanker capacity(L) |
400 |
|
|
Front axle |
HF9 |
|
|
Rear axle |
HC16 |
|
|
Color |
Red, White, Blue, Green, or as you ned |
|
|
Tyre |
1200R20 11pics |
|
|
Cab |
HW76(one sleeping, with air-condition) |
|
|
Engine(Steyr technology, made in China) |
Model |
WD615,water-cooled, four Strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
|
Fuel type |
Diesel |
|
|
Horse Power,max |
336 HP 371HP 420 HP |
|
|
Emission |
EURO2 or Euro4 |
|
|
Transmission |
Model |
Model |
|
Transmission |
Model |
HW19710 |
|
Service brake |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Steering system |
Model |
ZF8098 |
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
|
Starter |
7.5Kw/24V |
|
Product feature and application
Used 10 wheel sinotruck howo 6x4 25 ton dump tipper truck are the ideal choice of clients with low budget but have requirements of the practicality of the truck. The used dump trucks can be used for transporting stones, sands, minerals etc, which have the same functions of new dump trucks.
Price of our used 10 wheel sinotruck howo 6x4 25 ton dump tipper truck is much cheaper than new dump trucks. Production date of the tractor truck ranges from year of 2014-2016, emission standard from EURO II and EURO III, house power ranges from 336-420hp, running mileage FROM 50000-70000 kilo meters.
Production details
Every truck we deliver to our customers should pass the early stage "used truck optimum selection,key component detection and replacement",before delivery "all round debugging of trucks, comprehensive inspection of trucks"and so on. strive to deliver to customers every export of used truck and used constructionmachinery are up to high quality standards.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
1. Container: The cheapest and fast one ;put the machine into container need disassemble .
2. Flat rack: Often used to ship two wheel loader,max load-bearing is 35tons.
3. Bulk cargo ship: which is better for bigger construction equipment,no need disassemble.
4. RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.
5. You can depend on your own requires to choose one favorite.
