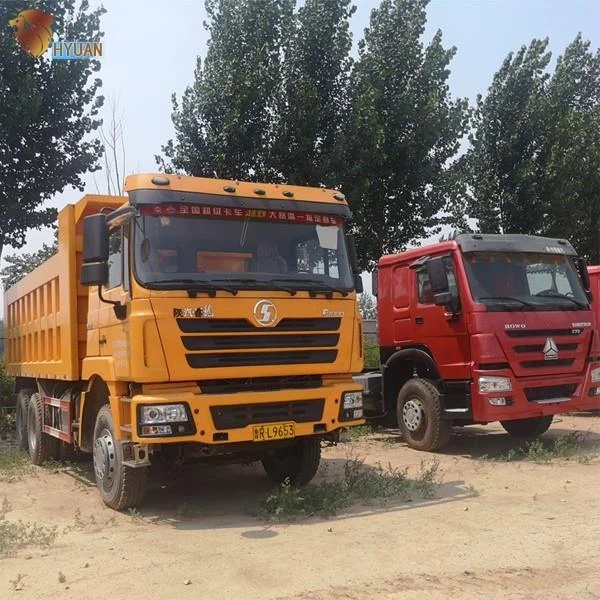

Used Shacman Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Side wall semi-trailer with a sash structure,Widely used, mainly suitable for medium and long-distance transportation of medium and heavy-duty and bulk cargo. It has strong applicability and has become a medium and long-distance freight vehicle.
Product specification
|
Model Name |
shacman mini dump truck |
|
Driving Type |
6*4 , left hand drive |
|
Weights |
|
|
Gross weight(kg) |
6010 |
|
Rated payload weight(kg) |
2380 |
|
Curb weight(kg) |
3500 |
|
Axle loading9(kg) |
2280/3730 |
|
Dimensions |
|
|
Wheelbase(mm) |
3300 |
|
Overall Dimension(mm) |
5995×1940×2340 |
|
Box dimension (mm) |
3240×1820×600 |
|
Box thickness (mm) |
Bottom 4mm,side 3mm |
|
Max speed(km/h) |
90 |
|
Engine |
|
|
Engine model |
CY4102-C3F(95HP) |
|
Engine type |
Inter-cooling,water-cooling |
|
No. of cylinders |
straight-4 cylinders |
|
Displacement(L) |
3.856L |
|
Max. output (kw) |
70kw |
|
Drive Line |
|
|
Transmission |
Dongfeng,5 forwards,1 reverse gear,manual operation |
|
Brake system |
Air brake |
|
Cab |
|
|
Cabin |
One row,with sky windows |
|
Standard configuration |
Air conditioner (optional ) |
|
Axle |
|
|
Front axle |
1.5tons |
|
Rear axle |
3tons |
|
Tire specification |
|
|
Tire specification |
7.00-16 standard tire,6 tires+1 spare tire |
|
Other |
|
|
Electric system |
24V |
Product feature and application
1) Mature technology, stable performance, low purchase cost, high operating profits, and short ROI period.
2) Loading capacity is 30% higher than on-road vehicle of the same power range under off-road work conditions.
3) Specific product configurations designed for different work conditions achieves the optimal match between operating capabilities and benefits.
4) Safe and reliable: primary and secondary braking systems with service brake and parking brake ensure driving safety under any running condition.
5) Our dump truck could work in very harsh environments and terrain.
6) We use new structure in the form of leaf springs, so our truck have larger carrying capacity.
Production details
1) We enlarged the capacity of the cargo tank to improve transport efficiency.
2) We use full rigid skeleton cab, better security, wider field of vision, manipulating space, improved ride comfort manipulation, reducing the labor intensity of the driver.
3) According to the different working condition, we have 336-371-420 horsepower engine, large ratio, high torque gearbox.
4) Large carrying capacity: 30T large reduction drive axle designed to strengthen the suspension system, high strength material frame rails, Tire model: 12.00R20 12R22.5 315/80R22.5.
5) Safe and reliable: primary and secondary braking systems with service brake and parking brake ensure driving safety under any running condition.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
1) Naked or waxed before on board.
2) Delivery time: 30 days after receiving payment in advance.
Advantages:
1. Competitive price
From numerous comparison and feedback from clients, our price is more competitive than manufacturers/ factories.
2. Quick response
Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond clients inquires and question all the time.
3. World class quality
100% quality control is guaranteed during production and before delivery.
4. Fast delivery
We have a variety of resources, locally and nation widely, to receive trailer in timely manner. In 70% circumstance, we can have an 15 days delivery of regular trailer for our clients.
FAQ
1. How do you control quality?
We have a standard procedure to inspect the materials and products at every stage in the manufacturing process.
2. Min Order Quantity:
One unit or one sets
3. Do you inspect all your products before delivery?
Yes, we inspect the appearance and functions of the trailers before delivery.
4. What is your terms of payment?
30% T/T as deposit, and 70% before shipment. We'll show you the photos of the products and packages before you pay the balance.
