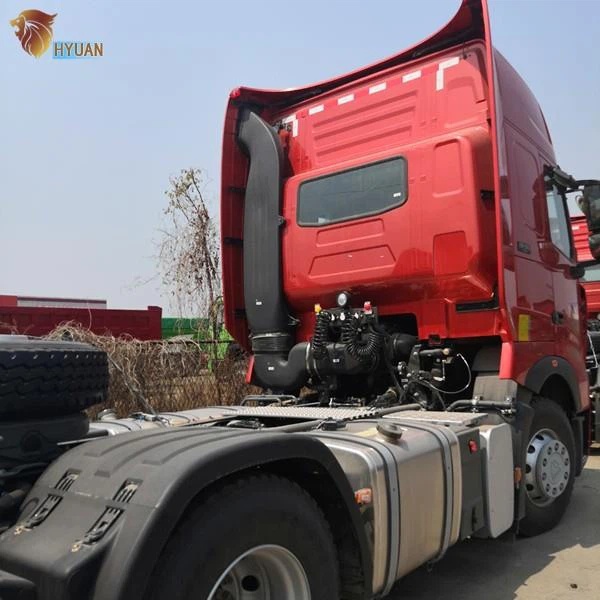

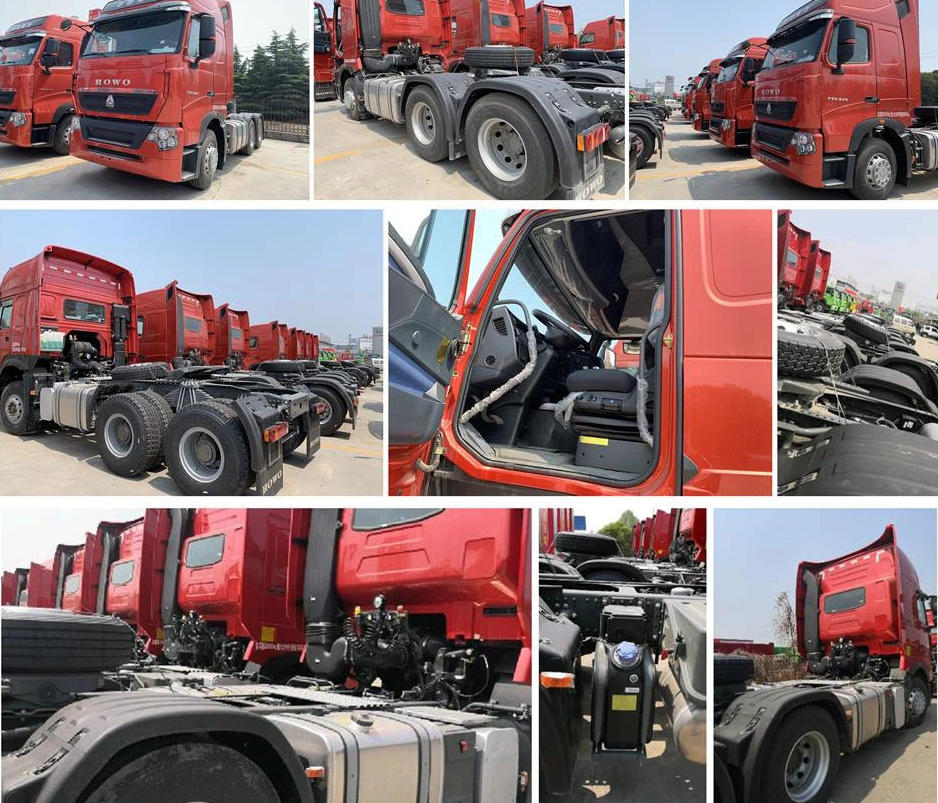

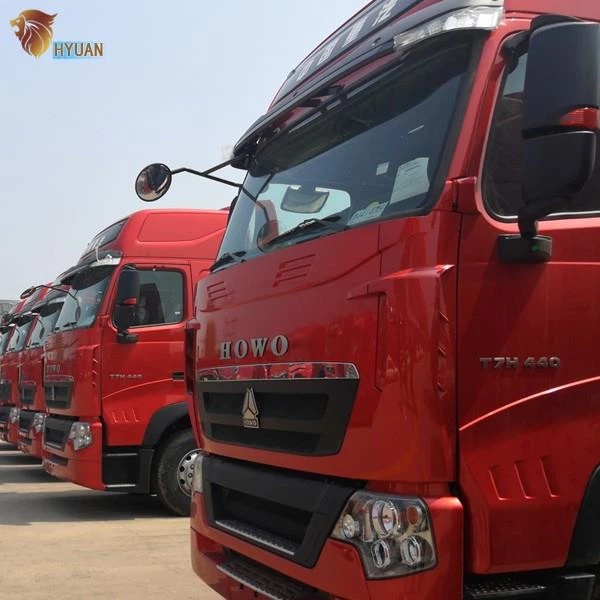

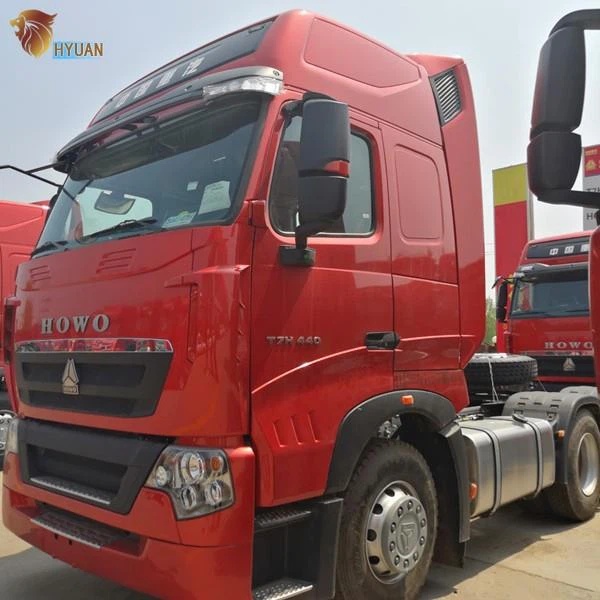

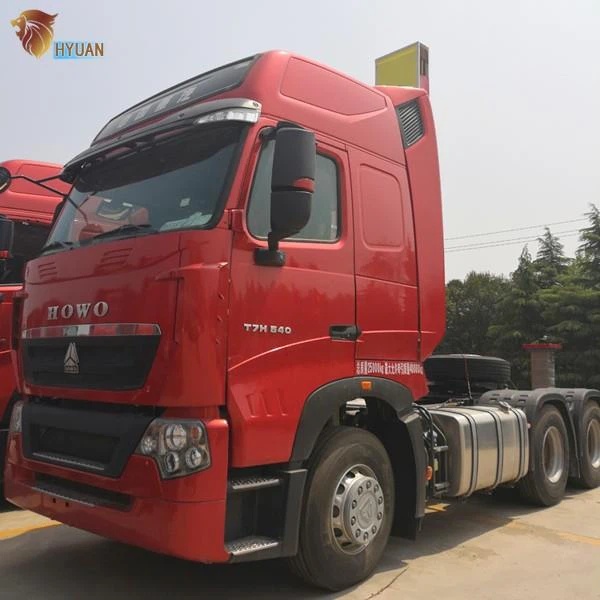

Sinotruk Howo T7 Tractor Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
A tractor unit (prime mover or tractor truck ) is known as truck head or trailer head, a characteristically heavy-duty towing engine that provides motive power for hauling a towed or trailered load. The tractor-trailer combination distributes a load across multiple axles while being more maneuverable than an equivalently sized rigid truck. The most common trailer attachment system is a fifth wheel coupling, allowing rapid shift between trailers performing different functions, such as a bulk tipper and box trailer. Trailers containing differing cargoes can be rapidly swapped between tractors, eliminating downtime while a trailer is unloaded or loaded.
Product specification
|
Truck Brand |
SINOTRUK-HOWO |
|
|
Driving Style |
Left/Right Hand Driving |
|
|
Dimension(Lx W xH)(unloaded)(mm) |
6800x2496x2958 |
|
|
Approaching angle/Departure angle(°) |
16/70 |
|
|
Overhang(front/rear) (mm) |
1500/725 |
|
|
Wheel base(mm) |
3225+1350 |
|
|
Front track/Rear track(mm) |
2022/1830/1830mm |
|
|
Max speed(km/h) |
101 |
|
|
Curb weight(kg) |
9180 |
|
|
Loading Weight(kg) |
25000 |
|
|
Engine(Steyr technology, made in China) |
Brand |
SINOTRUK |
|
Model |
WD615.47, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection |
|
|
Fuel type |
Diesel |
|
|
Horse Power, max(kw/rpm) |
371HP |
|
|
Emission |
EURO II |
|
|
Fuel tanker capacity (L) |
400L |
|
|
Clutch |
430 pull-type diaphragm spring clutch |
|
|
Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
ZF8098 hydraulic steering with power assistance |
|
Front axle |
HF9, 9 tons loading capacity |
|
|
Rear axle |
HC16, 16 tons loading capacity |
|
|
Color |
optional |
|
|
Tire |
1200R20, 10+1pcs |
|
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
|
Starter |
7.5Kw/24V |
|
|
Cab |
HW76 cab one sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc. |
|
