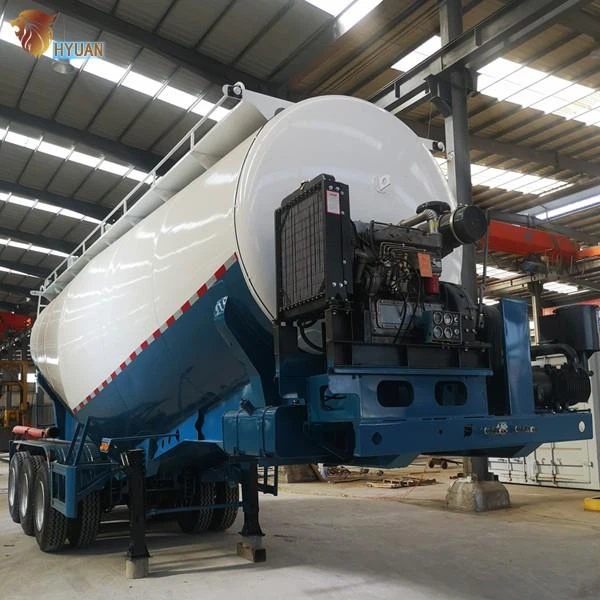

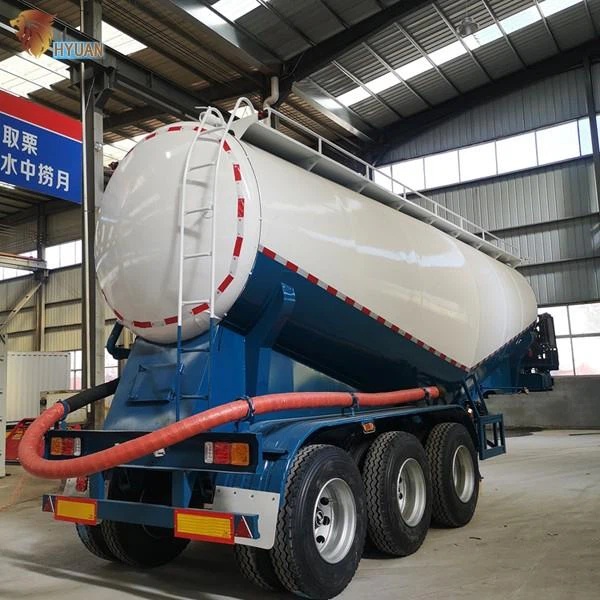

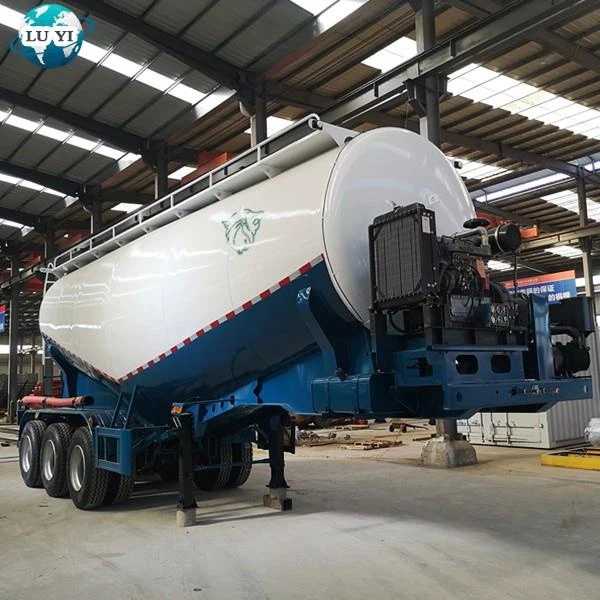

60Ton V Shape Cement Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
60 ton cement trailer is for large quantities of dust materials (bulk cement) transport of special vehicles,It is suitable for the transportation and air pressure unloading of fly ash, cement, limestone, ore powder and other particles whose particle diameter is not more than 0.1mm.
Product specification
|
Weight: |
Loading Capacity |
60T |
|
Axle Weight Load |
13T |
|
| Specification: |
Axle number |
3 |
|
Axle Brand |
FUWA |
|
|
Suspension |
Common mechanical |
|
|
King Pin |
2" or 3.5" traction pin |
|
|
Dimensions (LxWxH) |
13000*2500*4200mm |
|
|
Support legs |
28T |
|
|
Wheel Rim |
9.0-22.5 |
|
|
Wheelbase |
7180+1310+1310mm |
|
|
Steel Spring |
10 pieces per axle |
|
|
Tank body & end |
St-37/4mm steel&6mm steel sheet Shape:V type |
|
|
Engine |
Diesel engine:weichai brand model:4102.44 KW |
|
|
Discharge valve & pipe |
4” disc valve&4” seamless steel tube |
|
|
Air-charging system |
2” main hole. 2” check valve.1.5” safe valve. 0.4Mpa.gauge |
|
|
Quadratic blow |
1” diameter check valve |
|
|
Discharge cover |
2-4 sets of 100mm discharge valves |
|
|
Landing Gear |
Manual operating, Heavy duty landing gear (Brand Optional) |
|
|
Manhole cover |
500mm manhole cover 2 sets with 2 breather valve |
|
|
Accessories |
1 Set standard tool box |
|
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
Painting |
1coat of anti corrosive primer, twice coats of final paint |
|
|
compressor |
BOHAI brand 14M3 |
|
|
Tire: |
Tire spe. |
12R22.5 Chinese brand |
|
Number of Tire |
12 pieces |
|
|
Spare Tire Carriers |
2 pieces |
|
|
Frame: (specs. and materials) |
Main beam |
The height of the beam is 500mm; Down plate is 16mm;Middle plate is 8mm. |
|
Tank body |
5mm steel plate, head and back head made of 6mm steel plate the shape can be column or TV square shape |
|
|
Brake: |
Brake Chamber |
Six big chamber( Brand Optional ) |
|
Brake system |
Dual Line Brake system (ABS ) |
Product feature and application
(1) Higher loading rate: >98%, fully filling.
(2) Lower residual rate: <0.2%, make the most of transportation.
(3) Lighter tare weight: 5.8 ton minimum, reduce transport fuel consumption
(4) Higher working pressure: Testing 3bar, working 2.5bar, >15m higher delivery height suitable most silo.
(5) Faster unloading: >1.5ton/min, shorter compressor working time, help compressor longer life and lower fuel cost.

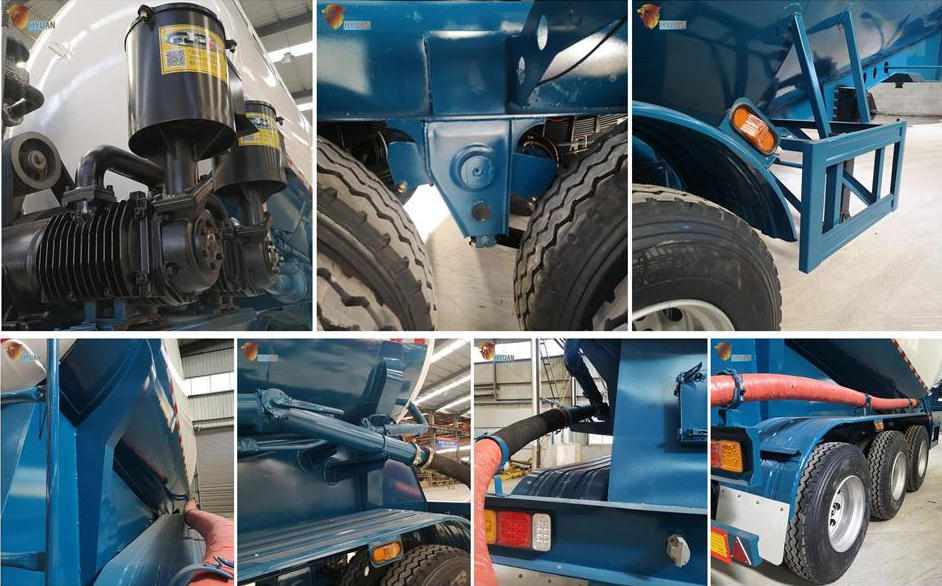

Prodection details
Dry bulk cement silo tank semi trailer is suitable for transportation and pneumatic unloading of dry powder materials with particle diameters less than 0.1mm, such as fly ash, cement, lime powder and ore powder. The unloading height can reach 15mm and the horizontal distance is 5m.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
● Reply your inquiry in 12 working hours;
● Experienced staffs answer all your questions;
● Customer’s design is available for certain products(OEM);
● Spare parts for all types of engine machinery with reasonable price;
● Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
Deliver,shipping and serving
Packing: spray wax.Professional packing by bulk ship or Ro- ro ship , to help customers save the shipment fees as much as we can.
